Home > Product > Product Detail
Product Detail
      1. CG Series of Worm Operators
      2. CFP Series of Worm Operators
      3. CWG Series of Worm Operators
      4. BG Series of Bevel Gear Operators
      5. CBG Series of Bevel Gear Operators
      6. CB Series of Bevel Gear Operators
      7. CLG Series of Bevel Gear Operators
      8. CPR Series of Bevel Gear Operators
      9. Handwheels for Gear Operators

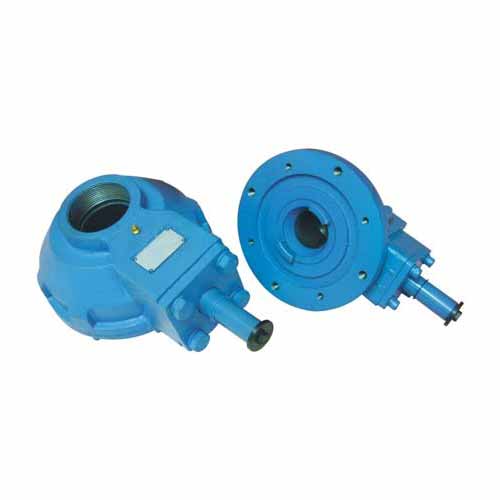

CBG Series of Bevel Gear Operators

Range of product: ANSI:(CBGA) DIN:(CBG) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：

●Multi turning type manual drive device suitable for gate valves, stop valves, etc.

●Allowable output torque range is 1017-678N.m

●Tooth scarf join type connection with valve.Flange joining is designed according to standard ISO 5211/

MSS SP-101.

●Material for gear body and cover are made of cast iron and parts are made of high precision ductile iron.

Product range：

Standards

Series Type

SizeRange

ANSI

CBGA

CBGA20-CBGA50

DIN

CBG

CBG20-CBG50

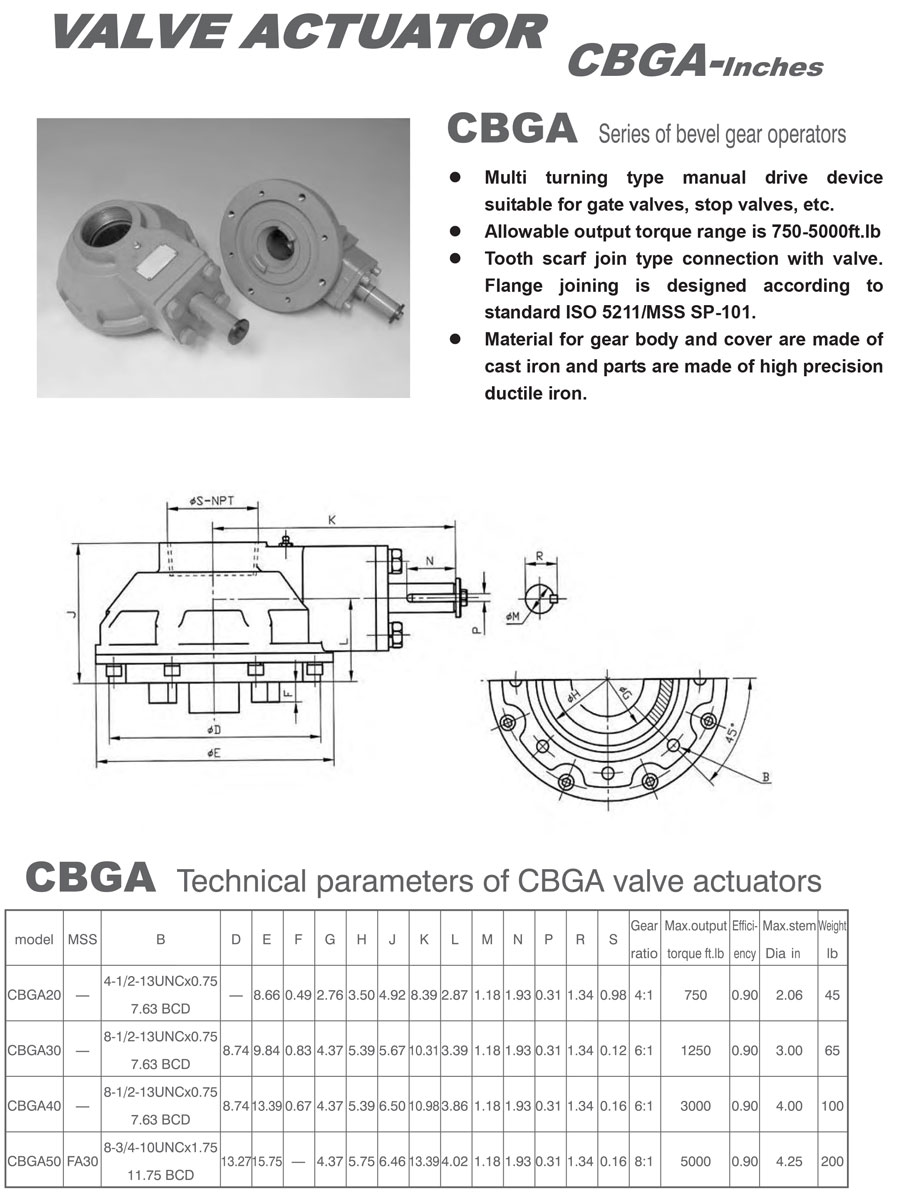

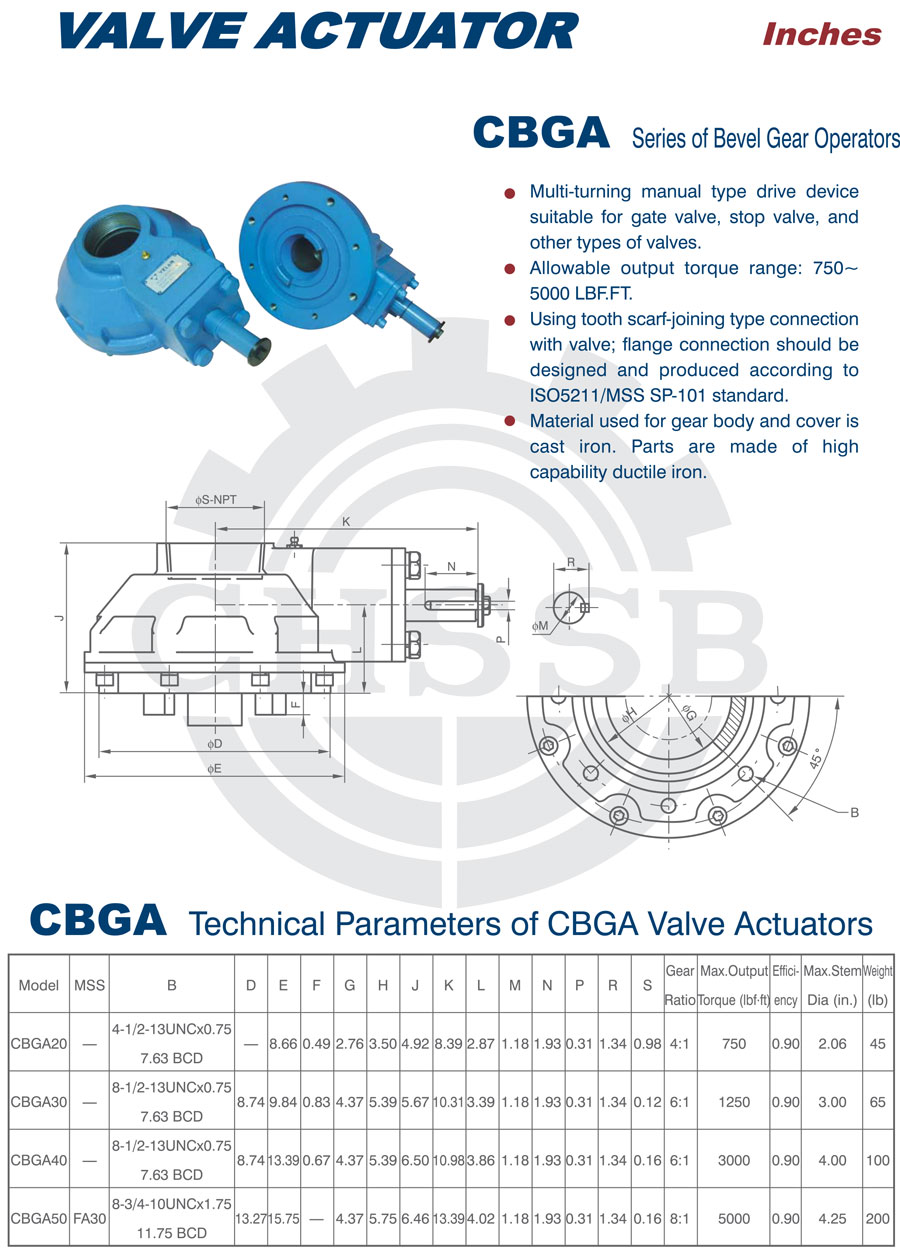

ANSI Catalog:

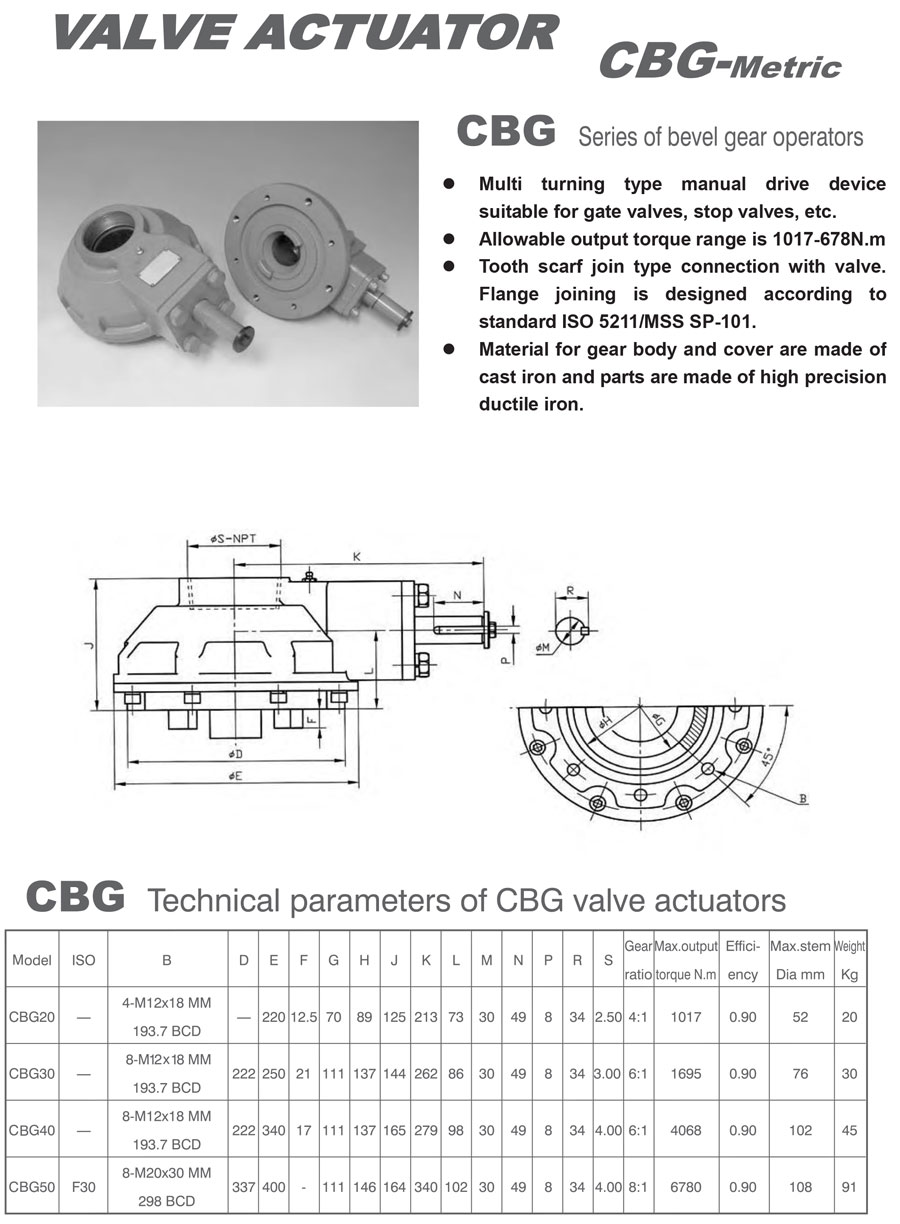

DIN Catalog:
