Home > Product > Product Detail
Product Detail
      1. E(Z1) Type CAPT-LOCKS
      2. EP Type CAPT-LOCKS
      3. B(Z2) Type CAPT-LOCKS
      4. BH Type CAPT-LOCKS
      5. Z3 Type CAPT-LOCKS
      6. Z4 Type CAPT-LOCKS
      7. Z5 Type CAPT-LOCKS
      8. FE(Z6) Type CAPT-LOCKS
      9. Z7A/B/C Type CAPT-LOCKS
      10. SD Type CAPT-LOCKS
      11. SK Type CAPT-LOCKS
      12. FA1 Type CAPT-LOCKS
      13. FA2(Z8) Type CAPT-LOCKS
      14. Z9 Type CAPT-LOCKS
      15. SS(Z10) Type CAPT-LOCKS
      16. T(Z11) Type CAPT-LOCKS
      17. DE(Z12A) Type CAPT-LOCKS
      18. Z12B Type CAPT-LOCKS
      19. Z12C Type CAPT-LOCKS
      20. FB1 Type CAPT-LOCKS
      21. FB2(Z13) Type CAPT-LOCKS
      22. FC Type CAPT-LOCKS
      23. FD Type CAPT-LOCKS
      24. Z14 Type CAPT-LOCKS
      25. Z15 Type CAPT-LOCKS
      26. Z16 Type CAPT-LOCKS
      27. Z17A/B Type CAPT-LOCKS
      28. D(Z18) Type CAPT-LOCKS
      29. DS Type CAPT-LOCKS
      30. DX Type CAPT-LOCKS
      31. HL(Z19A) Type CAPT-LOCKS
      32. HLL(Z19B) Type CAPT-LOCKS
      33. Z20 Type CAPT-LOCKS
      34. FAR(Z21) Type CAPT-LOCKS
      35. ML Type CAPT-LOCKS
      36. ML-B Type CAPT-LOCKS
      37. ML-C Type CAPT-LOCKS
      38. F Type Tightening Flange
      39. H Type Tightening Flange

ML Type CAPT-LOCKS

Range of product: ANSI/DIN:(ML) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market) ML Type CAPT-LOCKS

Product Details

Parameters Introduction：

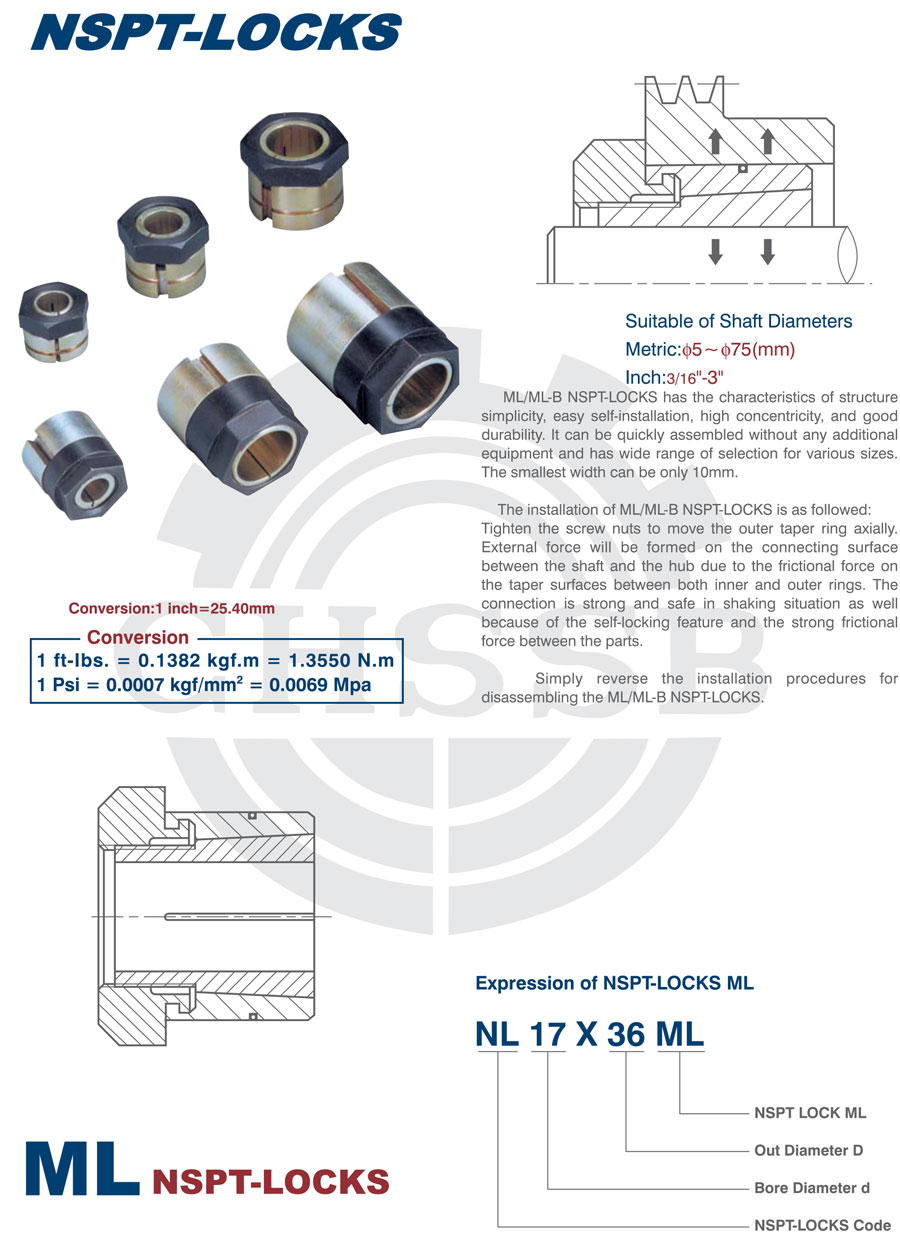

ML /ML-B NSPT-LOCKS has the characteristics of structure simplicity, easy self-installation, high concentricity,

and good durability. It can be quickly assembled without any additional equipment and has wide range

of selection for various sizes.The smallest width can be only 10mm.

The installation of ML /ML-B NSPT-LOCKS is as followed:

Tighten the screw nuts to move the outer taper ring axially.External force will be formed on the connecting

surface between the shaft and the hub due to the frictional force on the taper surfaces between both inner

and outer rings. The connection is strong and safe in shaking situation as well because of the self-locking

feature and the strong frictional force between the parts.

Simply reverse the installation procedures for disassembling the ML/ML-B NSPT-LOCKS.

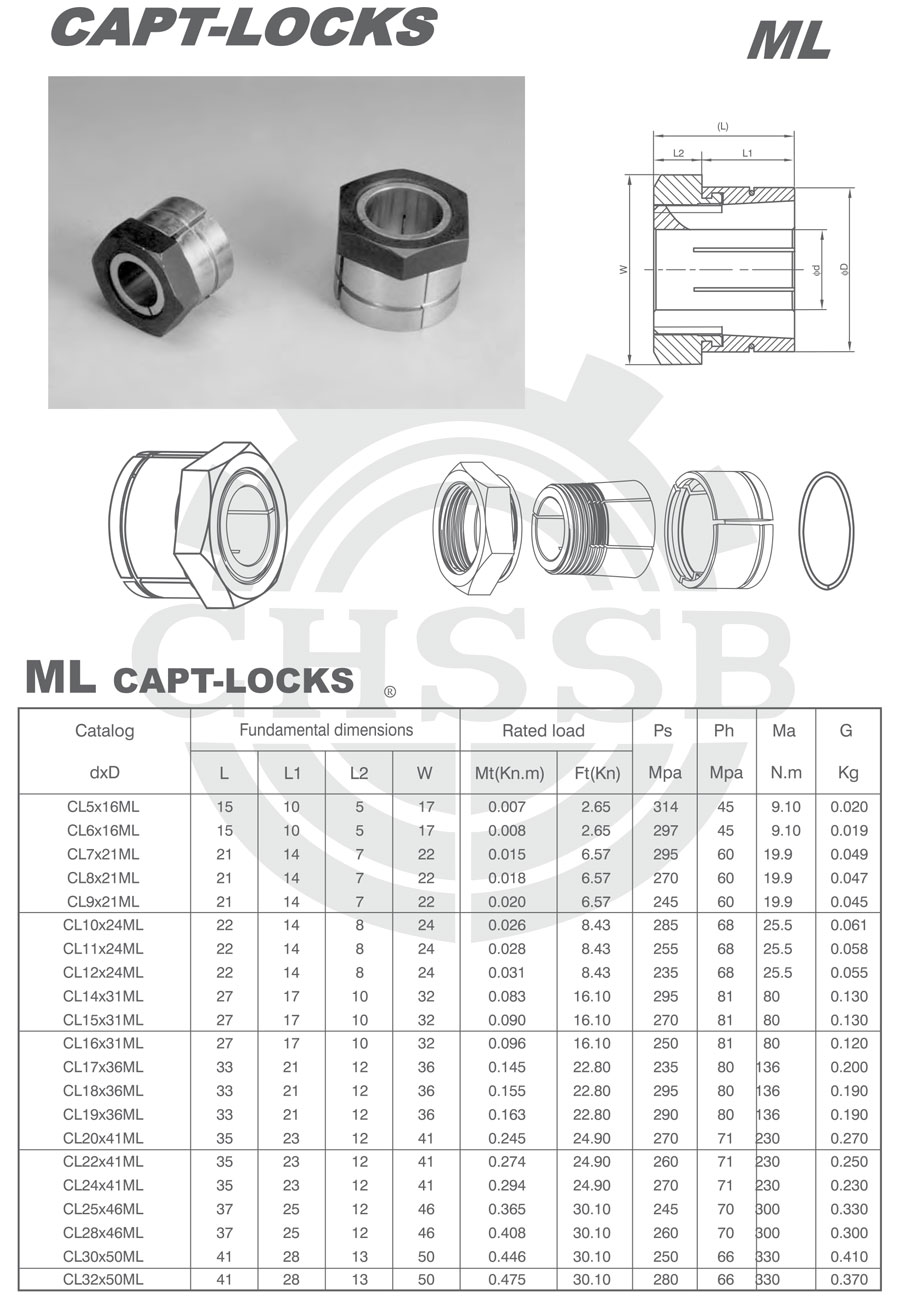

Product range：

Standards

Series Type

SizeRange

ANSI/DIN

ML

CL5x16ML至CL32x50ML

ANSI Catalog:

DIN Catalog:
