Flame Cut Sprockets

Range of product: ANSI:(1654/2069/3067/3075/A3075/ 3500/4000/4063/4500/5000/6050) Inch size product (Apply to ANSI market) Flame Cut Sprockets

Product Details

Product introduction：

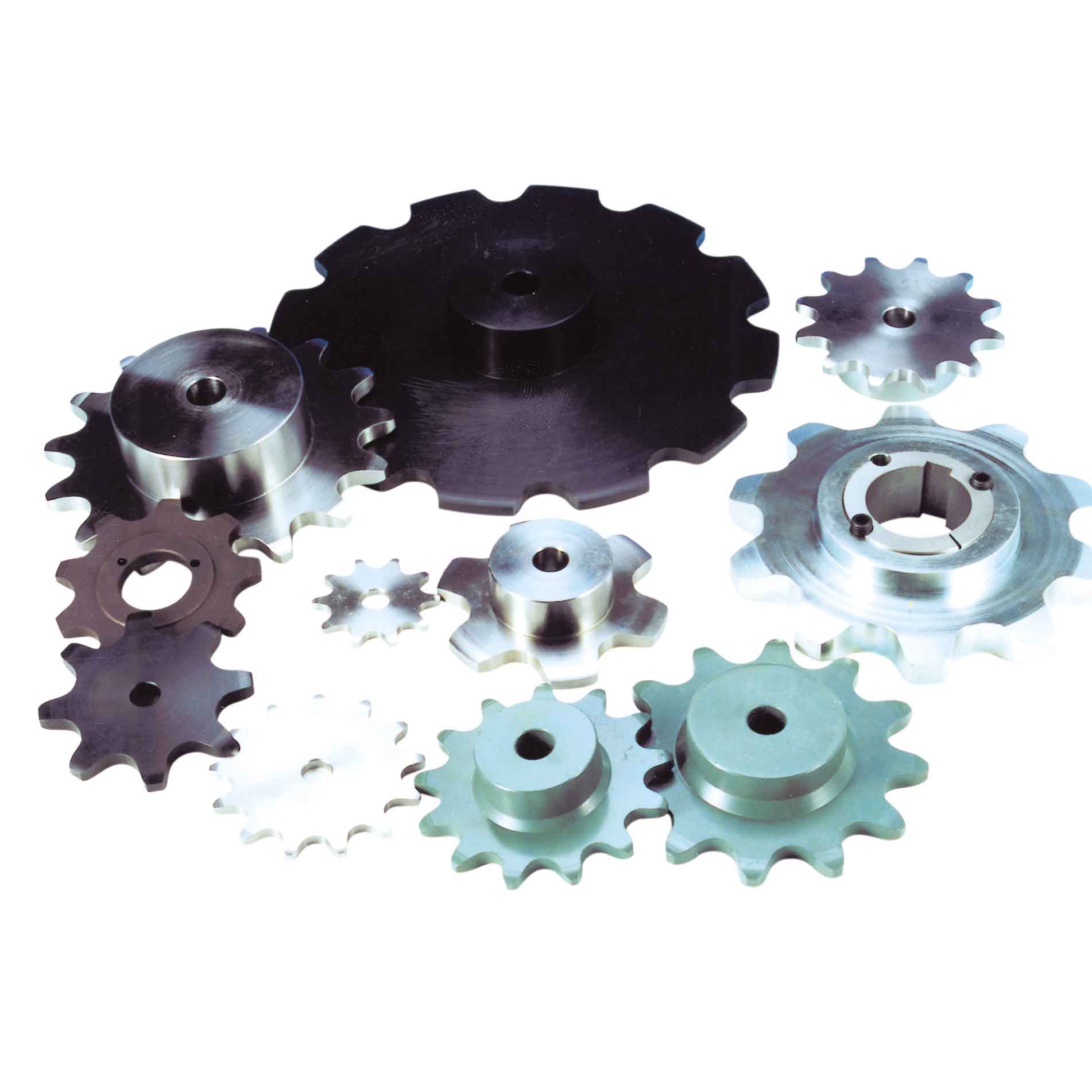

NSPT has series of engineered conveying sprockets and matching conveying chains of different varieties.

We manufacture engineered sprockets with and without hub, finished bore or taper bore. (All pitches are

within 6" and maximum diameter is 80".) NSPT engineered conveying sprockets are made of high quality

steel, fine teeth milled on CNC center, high frequency hardened to HRC4050, showing advantages of good

hardiness, wear-resisting and long life.

Product range：


Standards

Series Type

SizeRange

ANSI

1654,PITCH-1.654"

1654C12-1654C60

2069,PITCH-2.609"

2609C08-2609C60

3067,PITCH-3.067"

3067C10-3067C48

3075,PITCH-3.075"

B3075C07-B3075C18

A3075,PITCH-3.075"

A3075C08-A3075C60

3500,PITCH-3.500"

3500C10-3500C48

4000,PITCH-4.000"

4000C06-4000C16

4063,PITCH-4.063"

4063C06-4063C48

4500,PITCH-4.500"

4500C10-4500C48

5000,PITCH-5.000"

5000C10-5000C48

6050,PITCH-6.500"

6050C06-6050C12

ANSI Catalog:ANSI Flame Cut Sprockets.pdf
