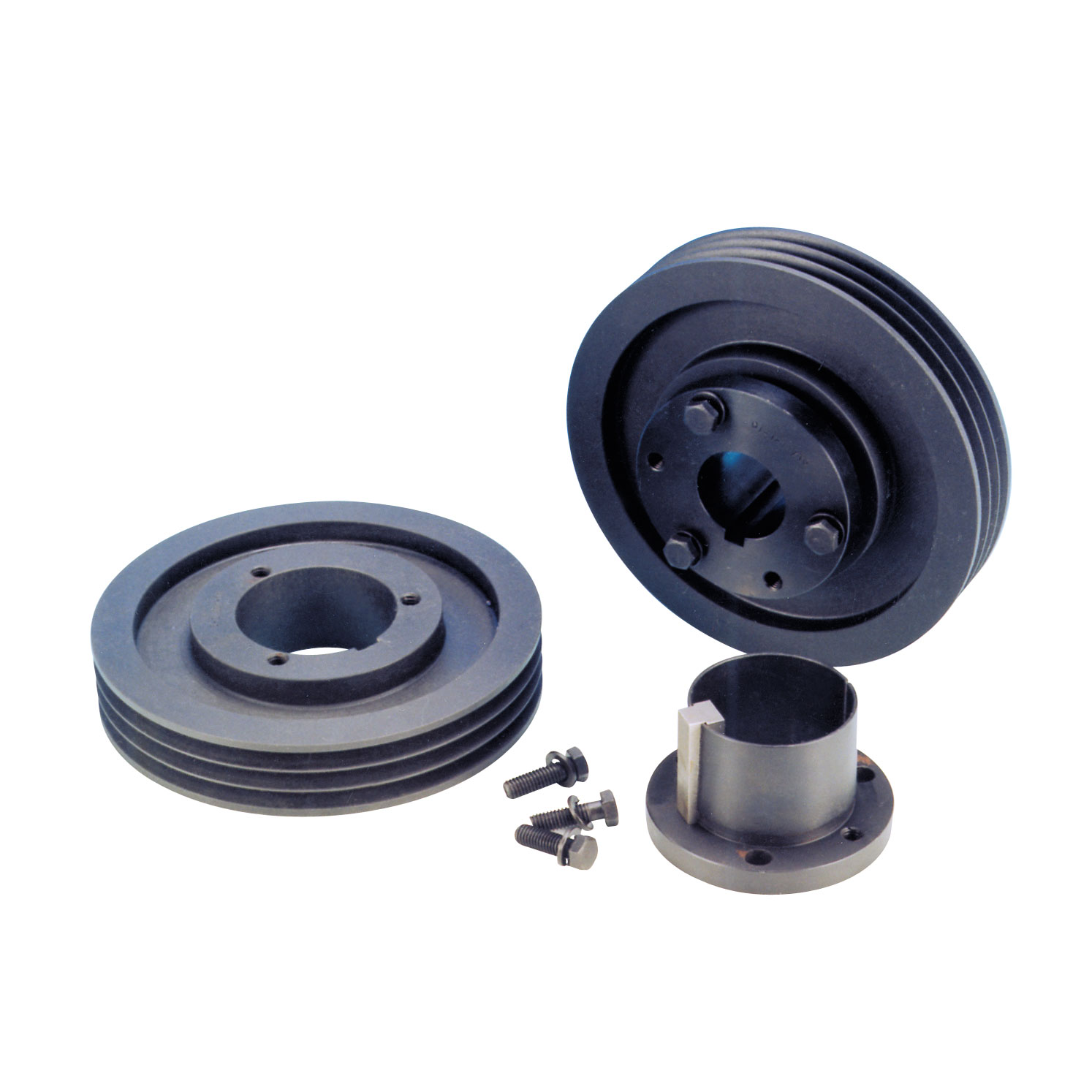

STL 3V-5V-8V V-pulleys

Range of product: ANSI:(3V-2/3V-3/3V-4/3V-5/3V-6/3V-8/ 3V-10/5V-2/5V-3/5V-4/5V-5/5V-6/ 5V-8/5V-10/8V-4/8V-5/8V-6/8V-8/ 8V-10/8V-12/8V-14/8V-16) Inch size product (Apply to ANSI market) STL 3V-5V-8V V-pulleys

Product Details

Parameters Introduction：

NSPT 3V-5V-8V series of pulleys with maximum 50" outside diameter and maximum 12 grooves can be

respectively suitable for bushes of BTL, QTL and STL series.

NSPT is capable of designing and producing non-standard pulleys based on customers' needs.

Product range：

Standards

Series Type

SizeRange

ANSI

3V-2

2-G3V26至2-Q3V250

3V-3

3-G3V26至3-R3V335

3V-4

4-G3V26至4-R3V335

3V-5

5-P3V47至5-R3V335

3V-6

6-Q3V47至6-R3V335

3V-8

8-Q3V47至8-S3V335

3V-10

10-Q3V47至10-S3V335

5V-2

2-P5V44至2-R5V280

5V-3

3-P5V44至3-U5V500

5V-4

4-P5V44至4-U5V500

5V-5

5-Q5V46至4-U5V500

5V-6

6-Q5V71至6-U5V500

5V-8

8-Q5V71至8-U5V500

5V-10

10-R5V80至10-U5V500

8V-4

4-S8V125至4-U8V640

8V-5

5-S8V125至5-U8V640

8V-6

6-S8V125至6-U8V640

8V-8

8-S8V125至8-U8V640

8V-10

10-U8V125至10-W8V640

8V-12

12-U8V125至12-W8V640

8V-14

14-U8V125至14-W8V640

8V-16

16-U8V125至16-W8V640

ANSI Catalog：ANSI STL 3V-5V-8V V-pulleys.pdf
